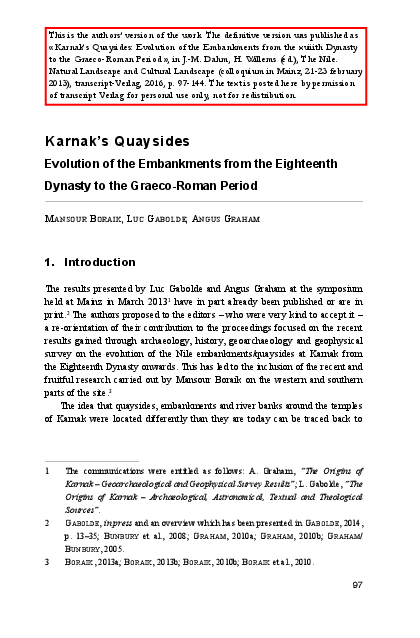

This is the authors’ version of the work. The definitive version was published as
« Karnak’s Quaysides: Evolution of the Embankments from the xviiith Dynasty
to the Graeco-Roman Period », in J.-M. Dahm, H. Willems (éd.), The Nile.
Natural Landscape and Cultural Landscape (colloquium in Mainz, 21-23 february
2013), transcript-Verlag, 2016, p. 97-144. The text is posted here by permission
of transcript Verlag for personal use only, not for redistribution.
Karnak’s Quaysides
Evolution of the Embankments from the Eighteenth
Dynasty to the Graeco-Roman Period
Mansour Boraik, Luc Gabolde, Angus Graham
1. Introduction
The results presented by Luc Gabolde and Angus Graham at the symposium
held at Mainz in March 20131 have in part already been published or are in
print.2 The authors proposed to the editors – who were very kind to accept it –
a re-orientation of their contribution to the proceedings focused on the recent
results gained through archaeology, history, geoarchaeology and geophysical
survey on the evolution of the Nile embankments/quaysides at Karnak from
the Eighteenth Dynasty onwards. This has led to the inclusion of the recent and
fruitful research carried out by Mansour Boraik on the western and southern
parts of the site.3
The idea that quaysides, embankments and river banks around the temples
of Karnak were located differently than they are today can be traced back to
1 The communications were entitled as follows: A. Graham, “The Origins of
Karnak – Geoarchaeological and Geophysical Survey Results”; L. Gabolde, “The
Origins of Karnak – Archaeological, Astronomical, Textual and Theological
Sources”.
2 Gabolde, in press and an overview which has been presented in Gabolde, 2014,
p. 13–35; Bunbury et al., 2008; Graham, 2010a; Graham, 2010b; Graham /
Bunbury, 2005.
3 Boraik, 2013a; Boraik, 2013b; Boraik, 2010b; Boraik et al., 2010.
97
Mansour Boraik, Luc Gabolde, Angus Graham
the work of Legrain and Pillet.4 They investigated short sections of buried
embankments and proposed some hypotheses on former positions of the river.
The evidence of important movements of the Nile during the New Kingdom
until the Roman period can be ascertained by a number of different kinds of
sources which are reviewed and analysed in this paper enabling us to propose
some new hypotheses as to the historical evolution of the embankments in front
of the temple.
2. The textual and iconographical sources
Textual sources reveal that the Egyptians had a wide empirical knowledge of the
dynamics of their river as their wisdom literature attests.
The Teaching of Ani, most likely composed in the Nineteenth Dynasty,5 mentions
the unpredictable drainage of a channel:
“Last year’s watercourse is gone; another river is here today; great lakes
become dry places, sandbanks turn into depths”.6
4 Legrain, 1906a; Legrain, 1906b; Pillet, 1924, p. 84–86. See also Cabrol, 2001,
p. 427–430.
5 Quack, 1994, p. 61–62; Lichtheim, 1976, p. 135, suggested Eighteenth Dynasty.
6 Teaching of Ani, Lichtheim, 1976, p. 142; Quack, 1994, p. 110–111, 318–319.
98
Karnak’s Quaysides
The Teaching of Merikara, known to us from late Eighteenth Dynasty papyri
was most probably composed in the early Middle Kingdom.7 It recalls the
natural creation of new channels and the inevitability of the phenomenon:
“like a channel (is) being replaced by (another) channel, there is no river that
suffers to be constrained: it (the river) is the releaser of the water-branch (lit.
‘arm’) it had hidden himself inside”.8
Several literary texts make clear allusions to islands located off Karnak and
Luxor while others mention an island of Amun connected to the god, although
the locations of these islands are less precise.
A Ramesside hymn, P. Turin 54031, evokes the string of islands stretched
between Karnak and Luxor:
“The islands (iww) (which are) in front of the façade of (the temple of) Amun,
up to the ksbt bush of Opet (= Luxor), their (number) is like (that of) the stars
in the sky, stretching for you the earth off-shore”.9
The famous Ramesside Tomb Robbery record of P. Amherst III, 3 (≈ 1113 B.C.)
describes an island (mȝwt) – the “island of Amenope” – in the Theban area, used
7 Quack, 1992, p. 114–136 favours an early Twelfth Dynasty date.
8 Teaching of Merykara, translation based on Quack, 1992, p. 74–75, 193–194;
Gardiner, 1914, p. 33–34 translated: “As the mud-flat (?) is replaced by a flood.
There is no river that suffers itself to be concealed; but it loosens the dam (?) by
(?) which it lay hid”.
9 P.Turin 54031, V, 20, I, 8; cf. Condon, 1978, p. 14, 22. The translation given here
is L. Gabolde’s.
99
Mansour Boraik, Luc Gabolde, Angus Graham
as a shelter by the robbers, where they stopped in order to divide quietly the
booty of their theft.10
The ostracon O. Uppsala 608, dated to 115 B.C., deals with the collection of
taxes on the territory of eastern Thebes “Taxes on the harvest and (on the) extra
(quantity payable) by the farmers for the Island of Amun named ‘the southern
district’”, while the late Ptolemaic O. Leipzig 2200 mentions oil mills and
cultivations of oleaginous seeds in the Theban area located by reference to “the
Island of Aberhu”, to the “sand (the silting up ?) of the canal (?) Hel-mu”, and
the “island of Amran”.11
The “islands of Amun” connected with the cultivation of oleaginous seeds
mentioned in papyri originating from Gebelein are not precisely located.12
Whatever their location was, within or outside the territory of Thebes, their
name, often elaborated as “the Island of Amun …” shows that these new lands
were generally attributed to divine properties and especially to the estate of
Amun, as Yoyotte has already noted.13
Nine different “islands of Amun” are mentioned on the recto of P. Amiens
and P. Baldwin (BM EA 10061) dated to the late Ramesside period (≈ 1150-
1070 B.C.).14 Whilst all of the islands appear to be located in the Ninth or Tenth
nome of Upper Egypt, Janssen’s commentary on the text raises the important
point that the terms iw and mAwt are difficult to differentiate.15 Furthermore,
Gardiner16 makes a very interesting point concerning the difficulty of deciding
whether an expression such as tA mAwt is part of the composite place name or
whether it is simply a descriptive term. In the case of “the New land of Samĕ”
(P. Wilbour (B 10, 5)), Gardiner17 argues that there is no certainty that the “new
10 Peet, 1997, p. 49 (3,3), 61 (r° 1,6), 152 (10, 4–5): “the Island (?) of Amenemope”
and p. 162 comment on mȝwt.
11 K aplony-Heckel, 2010, p. 132, n° 55 and 142–143, n° 68.
12 K aplony-Heckel, 2009, p. 577–579 notes that the designation “islands of Amun”
does not make reference to deities of Gebelein but to Amun of Thebes.
13 Yoyotte, 2013.
14 Janssen, 2004, p. 4–5, 32; Gardiner, 1940, p. 95; Gardiner, 1941, p. 37–43.
15 Janssen, 2004, p. 19 n. 5, 33). See Graham, 2007, p. 299 for some initial com-
ments on differentiation of the terms and also Eyre, 1994, p. 75–76; Schenkel,
1978, p. 60–65.
16 Gardiner, 1948, p. 29.
17 Ibid.
100
Karnak’s Quaysides
land” was actually new at the time of Ramesses V as it appears that this was an
established local name. We can see today that toponyms on maps can also record
a ‘memory’ of past geomorphology of the floodplain.18
The walls of the “Chapelle Rouge” of Hatshepsut (≈ 1450 B.C.) present
descriptions of the embankments and of the procession roads used during the
Opet and the Valley festivals.
The portable bark of Amun is installed onboard the great riverine bark
of Amun departing for Deir al-Bahari for the beautiful Valley festival, at the
embankment, described as a tp-itrw (“above the river”; “overhanging the
river”, an expression which may define both the position of a boat, like the
User-hat, as that of a quay):
“Appearance in procession out of Karnak by the Majesty of the august god.
Going in peace at the (place) above the river for the navigation of Deir
al-Bahari”.19
Cabrol argues that tp-itrw refers to the basin at the end of the canal, but that it
does not have to have a “tribune / platform” associated with it.20
The landing place is also described in the scene of the arrival of the great
riverine bark returning to Karnak from Luxor:
“Landing in peace at the tribune (?) of Karnak”.21
However, the exact place of this tribune cannot be precisely determined from the
texts and representations.22
18 Bunbury et al., 2008, p. 356; Graham, 2010a, p. 133; Jeffreys, 1985; Smith /
Jeffreys, 1986.
19 Lacau/Chevrier, 1977, p. 170, § 227; Larché/Burgos, 2006, p. 98.
20 Cabrol, 2001, p. 631-634.
21 Lacau/Chevrier, 1977, p. 185, § 263; Larché/Burgos, 2006, p. 61.
22 Lacau/Chevrier, 1977, p. 186.
101
Mansour Boraik, Luc Gabolde, Angus Graham
On the earthly way from Karnak to Luxor, the procession stops before the Mut
temple in a bark station named
“the first station (named) ‘the stairs / platform of Amun in front (?) of the
house of the chest’”.23
The remains of this chapel have been identified by Ricke in front of the temple
of Mut and facing the Kamutef-Heiligtum.24 Interestingly, a gate of Hatshepsut
was found in the vicinity, inside the precinct of Mut25 and it most probably
opened directly on the processional road to Luxor.
A text of Montuemhat (≈ 660 B.C.) in his crypt at the Mut Temple seems to
describe the building of an embankment in order to prevent the flood from
threatening the temple of Khonsu: 26
[22]
“(… I ordered an embankment to be built for the god Khon)su (?) in beautiful
light sandstone in order to repel from (him) the flood of the River when it
comes”.27
Dated between the reign of Ptolemy V Epiphanes (reign 204-181 B.C.) and
that of Ptolemy IX Soter II (116-110 B.C., 109-107 B.C. and 88-81 B.C.),28 the
archive of Hermias’ trial has revealed that, west of the dromos of Khonsu and of
the forecourt of the Opet Temple, a north-south road existed named the “royal
23 Ibid., p. 161, § 207; 163, § 214; Larché/Burgos, 2006, p. 51–52.
24 R icke, 1954, p. 42 and pl. 13d.
25 Fazzini, 2001, p. 61–74.
26 Leclant, 1961, p. 215 l.22, 219 and 227, n. bj.
27 The restitution « [Khon]sou » has been suggested by Wreszinski, 1910, pl. III, col.
393, [22], but, without a divine determinative, it remains questionable. One may
also understand “[… I decided to built an embankment, and I made] it in beautiful
light sandstone …”
28 See Brugsch /R evillout, 1880; Pestman, 1993, p. 385–409.
102
Karnak’s Quaysides
street”. This street ran parallel to the eastern quay of a branch of the Nile, called
the “canal of the island of Amun”. The quay thus faced an island called “the
island of Amun” named “Tamaut”.29
A passage of the book of Nahum in the Old Testament (Nahum 3.8) deserves to
be quoted here as it seems to provide us with a description of Thebes before 663
B.C., lying among branches of the Nile: “Are you better than Thebes, situated
on the Nile, with water around her? The river was her defense, the waters her
wall”. This passage led Egli to reconstruct canals around the city, with the main
branch of the Nile flowing to the east but without any basis of geomorphological
investigation (see figure 1).30
Figure 1. Reconstruction of the Nile by Egli, 1959 based on
Nahum 3.8.
29 On tȝ-mȝwt, “New land”, see Yoyotte, 2013, p. 231–237; Bonneau, 1971, p. 70
n. 311, 115 and 193; Meeks, 1972, p. 56, n. 18; Gasse, 1988, p. 148 et n. 4; Eyre,
1994, p. 75–76; Graham, 2007, p. 299.
30 Egli, 1959, p. 40–43.
103
Mansour Boraik, Luc Gabolde, Angus Graham
Three iconographical sources appear to attest to canals and lakes associated
with Karnak. Issues of perspective (i.e. images showing primae facie plan and
elevations) of Egyptian pictorial evidence must be borne in mind at all times
when interpreting images.31
The Theban tomb of Neferhotep (TT 49 dating to the late Eighteenth Dynasty)
shows a widely known representation of the layout of the river Nile connected
to a basin by a canal in front of Karnak32 (see figure 2). The pylon at the end of
the processional way linking the tribune has been argued to be the third pylon
constructed by Amenhotep III.33 However, the precise position and even the
existence of the processional way, the tribune and the basin with its canal linked
to the Nile all remain to be determined. One of the most informative features
of the picture is the presence of an island surrounded by navigable channels in
front of the entrance of the canal linking the river to the tribune of the dromos.
Figure 2. TT 49 (Neferhotep): basin and tribune of Karnak with an island
in front of the canal (after Davies, waterways shaded in grey. NB not all the
banks are extant in the image and are approximations).
The representation of Khâbekhenet’s tomb, dated to the reign of Ramses II34 (≈
1250 B.C.), adds some information concerning the dromos in the area of the
Mut temple and the environment of the isheru lake, though the specific point of
31 Schlüter, 2009, p. 143–161.
32 TT 49. Porter /Moss, 1960, p. 93, [15–16]; Davies, 1933, I p. 28–32 and pl. XLI–
XLII and II, pl. III; Cabrol, 2001, p. 433–436 and Cabrol/Traunecker, 1993, p.
19–25.
33 Cabrol/Traunecker, 1993, p. 24 and n. 41; cf. Loeben, 1992.
34 TT 2 Khâbekhenet see Cabrol, 1995.
104
Karnak’s Quaysides
view of the artist did not result in representing the Nile embankment itself (see
figure 3).
Figure 3. Representation of the tomb of Khâbekhenet after Cabrol, 1995, pl. V a.
A block formerly attributed to Piânkhy (but more likely belonging to the
reign of Psamtek I) (≈ 660 B.C.) and discovered in the Mut Precinct35 shows
an interesting feature (see figure 4): a tree is represented between the prow of
the riverine bark of Amun and the tribune. Benson and Gourlay suggested the
tree represented “those growing on fertile soil beside the water”.36 In effect the
block could represent an elevation view of a plan similar to that depicted in
Neferhotep’s tomb, with the trees set around the basin and canal. Alternatively,
it could represent the presence of some kind of dry sandy bar between the tribune
and the boat.
35 Porter /Moss, 1972, p. 257–258 (8); Benson/Gourlay, 1899, pl. XXII 5; Foucart,
1924, pl. IX b and p. 118–119 (who wrongly sees a representation of Heliopolis);
Leclant, 1965, p. 114–115 [32, B]. On the precise date of the blocks, see Perdu,
2010 and Perdu, 2011, where a more convincing attribution of the blocks to the
reign of Psamtek I is proposed.
36 Benson/Gourlay, 1899, p. 258.
105
Mansour Boraik, Luc Gabolde, Angus Graham
Figure 4. Block from the temple of Mut showing a tree
between the bark of Amun and the tribune (after Benson/
Gourlay, 1899, pl. XXIIb).
In summary we can see that a number of Ramesside texts attest to islands in the
vicinity of Karnak. This is no surprise given the propensity of island formation
in the Nile.37 The pictorial evidence provides crucial information on the tribunes
and basin as formal access to the temple complex, but the location of the basin
remains unresolved.
3. The archaeological sources
Complementing the epigraphical and iconographical sources, excavations in
several areas of Karnak have brought to light various features connected with
embankments and dated to various periods.
37 Graham, 2010a.
106
Karnak’s Quaysides
3.1 The excavations of the Nineteenth and
Twentieth centuries
Extensive excavations were carried out on the western dromos of Karnak
and its tribune (key plan see figure 23), under the supervision of Lauffray.38
The extensive reports of this scholar are not always clear and often remain
inconclusive, but the subsequent comments of A. Cabrol have greatly improved
our understanding of these excavations.39 The dromos seems to have been
re-organized after the reign of Pinedjem I (≈ 1060 B.C.) of the Twenty-first
Dynasty, whereas the tribune is apparently later than the reign of Sheshonq I
(943-923 B.C.) of the Twenty-second Dynasty. A phase of restoration seems to
have occurred between the Twenty-third and the Twenty-fifth Dynasties.
Mudbrick wall structures within the sandstone tribune must date to the
Twentieth Dynasty as they covered – and thus postdated – layers which seem to
date to the period between the end of the Eighteenth Dynasty and the Twentieth
Dynasty, based on the blue painted ceramics they contained (layers d, d’ and
d’’).40 It is not clear if these mudbrick structures represent part of the construction
of the tribune or relate to an earlier structure or embankment. Considering the
notion that the basin and canal depicted in the tomb of Neferhotep were on
the central axis of the temple, we cannot yet rule out the possibility that these
mudbrick walls could have existed on the east bank of an island lying directly in
front of the Amun-Re complex.
Between 72.40 m and 73.50 m a.s.l., few occupation levels were identified,
some covered with lime, with abundant ashes, (undated) potsherds and chips of
sandstone, but no trace of any architectural structure. It seems likely that this
stratigraphy represents the dumps from workshops and a temporary occupation
of craftsmen from the beginning to the end of the Eighteenth Dynasty. An older
layer was identified below, around the levels 72.20–72.40 m a.s.l., consisting of
ashes and incorporating conical bread moulds. In the absence of drawings and
photos, it is alas not possible to evaluate their date. However, its composition
– the ashes and the bread moulds – evoke a temple’s bakery, and its low level,
compared to similar levels of the central part of the temple41 or from the forecourt
38 Lauffray, 1971; Lauffray et al., 1975, p. 43–76.
39 Cabrol, 2001, p. 117–136, 581–590.
40 Caution is, however, necessary in interpreting Lauffray’s dating as the whole as-
semblage of finds from each stratigraphic level has not been fully published.
41 Lanoë, 2007, p. 374–375, sp. pl. V–VII.
107
Mansour Boraik, Luc Gabolde, Angus Graham
of Opet,42 suggests that they could correspond to some kind of workshops from
the Middle Kingdom or Second Intermediate Period. However, the possibility
of a dump from a nearby bakery located at a higher level cannot be ruled out.
3.2 Tribune
In the 1890s, George Legrain excavated to a level ten courses of ashlars below
the protruding pavement course of the tribune, a height of c. 71 m a.s.l.,43 in
order to record the Nile levels on the face of the tribune (see figure 5). The notion
that the tribune functioned as a quay was pointedly refuted by Clarke44 stating
that these structures do not meet the criteria for being quays, as they do not
accommodate the rise and fall of the Nile and the parapets around the platform
make loading/unloading and embarkation/disembarkation very problematic.
Figure 5. Georges Legrain recording inscriptions on the
western tribune (Image no. 40405_1 © CFEETK).
3.3 North Quayside Wall
Chevrier45 found a wall linked to the north side of the platform extending
northwards in line with the west face of the platform (key plan see figure 23).
42 Charloux, 2010, p. 202, fig. 7; Charloux, et al., 2012, p. 40–43.
43 Lauffray, 1971, p. 85.
44 Clarke, 1921, p. 70 n. 1.
45 Chevrier, 1947, p. 157-158.
108
Karnak’s Quaysides
He believed this wall was used as a quay with a set of stairs as well as notches
or loops at two different heights in the stone that allowed barks to be tied up (see
see figure 6).46 Of the five loops, three are cut in the fourth and fifth courses of
the wall and two on the eighth and ninth courses of the wall (see see figure 6-7).
The upper part of the loophole appears to have wear grooves where the ropes
were tied through the hole (see figure 7 close-up).
An important aspect of these notches not previously raised is that the lower
ones extend further north along the wall than the higher ones (see figure 6).
Whilst not precisely at the same angle as the steps to the north, they are almost
certainly designed so that the bow or stern was tied up to the mooring loop to
enable (dis)embarkation amidships by way of the steps. The loops would allow
vessels to moor at varying heights of the annual river cycle. The fact that there
are mooring loops at the same height along the wall might suggest that they were
designed to either accommodate vessels of varying lengths or they may have
served to enable rafting up to occur. They could also have been used for spring
lines. Fenders would have been used between the quay wall and the hull.
Figure 6 (left). North quay wall at Karnak showing the steps and two mooring
loops (after Chevrier, 1947, pl. 48); Figure 7 (right). North-west corner of the
western tribune with a mooring stone in the fifth course of the north wall (after
39685 ©CFEETK).
46 Ibid., p. 158, pl. 48.
109
Mansour Boraik, Luc Gabolde, Angus Graham
The lower loops are at c. 71.45 m a.s.l. whilst the upper loops are at c. 72.85 m
a.s.l.47 This would allow mooring at water levels certainly lower than 69 m a.s.l.,
assuming the crew member used full stretch to pass the rope through the loop
and with some freeboard. When the river was at its peak, a level marked by the
many inscriptions on the facade of the tribune (see figure 8), the boat would
have been able to tie up to a mooring post or stone mooring loop located on the
top of the north wall, which is at c. 74.5 m a.s.l. The freeboard of the ship would
have enabled the passengers and crew to step on and off the boat with relative
ease onto the top of the wall when the inundation lay in the region of 73.5–74 m
a.s.l. (see see figure 8). Below this they would have used the stairs. In year 6 of
Taharqa’s reign with the inundation reaching 74.4 m a.s.l. the passengers would
have needed a gangplank to descend from the boat, but even this highest of all
marked floods would have left the top of the wall largely dry except for the
lapping over of wind and boat-generated waves. In brief, this quayside was very
well designed to enable boats to tie up and passengers to embark and disembark
via the staircase.
Figure 8. Facade of the western tribune at Karnak with inundation heights;
the royal blue course of stones mark the flood heights between c. 73.5-74 m
and the grey blue course of stones those between c. 73-73.5 m (after Lauffray,
1971, fig. 6bis).
3.4 The recent excavations of the SCA (2007-2014)
Over seven years, the Supreme Council of Antiquities surveyed and excavated
the area in front of the First Pylon of Karnak Temple. The excavations extended
both north and south of the tribune to expose an embankment/quay wall at least
6.5 m high, running roughly perpendicular to the axis of the Amun-Re temple
47 Lauffray, 1971, fig. 6bis.
110
Karnak’s Quaysides
(key plan see figure 23).48 The wall was built of roughly cut blocks of sandstone.
The soundings have uncovered over 500 m of its length from north to south.
3.5 Quays north of the Tribune
The extension of excavations north of the tribune (key plan see figure 23) have
revealed a second flight of steps integrated into the wall coming down from
north to south and facing the steps earlier exposed by Chevrier. Both flights are
1 m wide and 20 steps were revealed in both descending 4.5 m.49 Augering
carried out by Matthieu Ghilardi (CNRS/CFEETK) suggested a platform might
exist between the two sets of steps at ~ 69.2 m a.s.l.50 If a platform does exist,
given the freeboard of the large ceremonial boats the king and priests could
embark and disembark with ease at levels between the highest inundation down
to ~ 68.7 m a.s.l. A stepped gangplank could have assisted (dis)embarkation if
the low Nile were even lower.
Different extensions of the embankment were added after the Kushite
Dynasty with the reuse of blocks inscribed with the name of a divine votaress
Amenirdis from the Twenty-fifth Dynasty being used in the construction. It
remained in use until the end of the dynastic period when the Ptolemaic baths
were constructed on top of the wall (see below).
3.6 Baths built after Ptolemy VIII and the Roman thermae
Excavations have revealed that the area to the west of the embankment was
widely used during the Ptolemaic-Roman period (key plan see figure 23).
Different phases of occupation were uncovered, including houses, workshops,
and baths.51 The occupation levels to the west of the embankment continued to
a depth of only 1 m next to the wall and were superimposed on different layers
of Nile silt. Occupation also extended north-south along the western facade of
the First Pylon. It seems most likely that the Ptolemaic buildings were burnt
in a large fire at the beginning of the Roman period. On the top level many
48 Boraik, 2010b; Boraik et al., 2013.
49 Boraik, 2010b, p. 72.
50 Augerings HA7 and HA8 were terminated as they hit upon sandstone fragments
at 69.22 m and 69.37 m a.m.s.l. respectively (Boraik /Ghilardi, 2011, p. 3213,
fig. 8). The 0.15 m difference in height could also suggest that rubble may have
been encountered rather than a platform.
51 Boraik, 2010b, p. 73–75; Boraik, et al. 2013.
111
Mansour Boraik, Luc Gabolde, Angus Graham
houses were found with their wooden roof beams burned and almost everything
in situ, including pottery, grinding stones, terracotta figurines, oil lamps, tools
of daily life, and coins. Among the important discoveries from the Ptolemaic-
Roman period – houses, workshops, and industrial activity buildings – three
bath complexes were unearthed. Two of them date to the Ptolemaic period and
one to the Roman period. The three baths are located to the north of the tribune
of Karnak Temple.
3.7 The Ptolemaic Public Bath
The Ptolemaic public bath was found 75 m to the north of the tribune ~ 1.50 m
below the modern surface (see figure 9 and key plan see figure 23). Under topsoil
at an elevation of approximately 77.20 m a.s.l., a very rich layer of pottery
sherds and ceramic debris was encountered, probably the backfill from older
excavations. It covered traces of masonry consisting of foundations of fired
brick and reused blocks of the dynastic period. It is thought that they belong
to a Roman or medieval domestic area. At a lower elevation, 76.64 m a.s.l., in
the eastern part of the sounding, a large mudbrick wall was unearthed. It was
apparently oriented north-south and associated with other brick masonry visible
in the eastern and western baulks. Against one of these mudbrick construction
blocks and at a level near the foundation at an elevation of 75.46 m a.s.l., a
hoard of 316 coins was discovered. This enabled these mudbrick structures to
be dated to the second half of the second century B.C. (Ptolemy VIII Evergetes
II ≈ 145 to 117 B.C.). These features most likely sealed the destruction level
of the bath.52 The construction of this massive feature undoubtedly caused the
systematic levelling and razing of the older bath, which was only preserved
to a maximum height of approximately 0.70 m. The bath itself had been built
directly over the uppermost course of the embankment.
The building of the Ptolemaic baths on top of and to the west of the quayside
wall points to a westward migration of the river. Furthermore, the lowest point
of the furnace serving the baths is measured at 72.46 m a.s.l.53 Assuming it was
constructed to stay dry all year round it provides a proxy for the flood levels
of the Ptolemaic period suggesting that the highest floods of the time were
somewhat lower than those recorded on the Western tribune during the Third
Intermediate Period. This concurs with the large-scale interpretations of two
52 Boraik, 2010b, p. 73; Boraik /Faucher, 2010.
53 Boraik et al., 2013, p. 49 n. 11
112
Karnak’s Quaysides
studies, but contradicts Seidlmayer’s conclusions.54 The strontium isotope ratios
from a single sediment core taken in the Manzala Lagoon as a proxy for Nile
discharge suggest a fall in flood height during the Late Period.55 Furthermore,
a recent meta-analysis of radiocarbon and Optically Stimulated Luminescence
(OSL) dated Holocene fluvial units in the Nile catchment suggests that a large
scale hydroclimatic shift in the Nile catchment occurred in c.450 B.C. The study
argues that after 450 B.C. water levels did not exceed those recorded before 500
B.C.56
Figure 9. The bath built after Ptolemy VIII.
The bath was built on a rectangular area, measuring 13 m by 18 m. The building
is characterized by circular rooms (tholoi).
The floor of the southern room consists of two concentric decorative zones.
The inner circle is 2.42 m in diameter and comprises mosaic components of
small multi-coloured pebbles (white, red, black, and brown) set in red mortar. It
is separated from the bath seats by a second zone which has a white band made
of mosaic pieces of white stone flakes. The mosaic floor of the northern tholos
is made of white stone flakes also set in red mortar and decorated with figures
of dolphins and tilapia fish in sequence and a rosette in the centre (see figure 9).
Three figures are made of small, coloured pebbles and outlined with lead strips
54 Seidlmayer, 2001, p. 72.
55 Stanley et al., 2003, fig. 2.
56 Macklin et al., 2015.
113
Mansour Boraik, Luc Gabolde, Angus Graham
that emphasize their shape. From this we can see that the bathing establishment
at Karnak stands out for the luxury of its mosaics and wall paintings.
The bath was probably built between the end of the third century and the first
decades of the second century B.C. and was therefore only in use for a very short
period. It is to date, the southernmost thermal installation known in Egypt and
apparently among the oldest archaeologically attested ones.57
3.8 The Great Roman Bath
As the excavation extended northwards from the private Ptolemaic bath at the
nearby site called El-Hassasna (key plan see figure 23), a Roman bath came to
light. These Roman thermae are made of fired brick with a floor of large sandstone
blocks. It covers some 3000 m2 with many well-preserved architectural features,
such as the bathing pools. Most superstructure walls stand less than a metre high
but some wall elements in the substructure are three metres tall. The thermae
were remodelled and redecorated over what appears to be a long period of use.
The Roman bath complex is partially built over late Ptolemaic buildings with
the Ptolemaic settlement extending to the north. The thermae were probably
built during the third century A.D. and were subsequently used for a long period
of time.
3.9 Geophysics across North quayside wall
Three short Ground Penetrating Radar (GPR) profiles (G030, G031 and G032
respectively located c. 184 m, 190 m and 205 m northwards from the centre of the
tribune) were carried out in February 2013 using a GSSI 200 Mhz antenna in the
northern part of the excavated area of the Roman baths (see below). They were
conducted in order to see to see if it was possible to identify the continuation of
the quayside wall below the excavations (key plan see figure 23).
All of the profiles demonstrated considerable ‘ringing’ in the data, most
probably caused by increased salt content in the soil derived from ground water
to the west of Karnak.58 In spite of this, a number of possible features were noted
in the data. These include strong reflections in G030 approximately 14–16 m
along the profile to a depth of 2.5–3.0 m, marking the possible location of the
top of the quayside wall in the northern area of the MSA excavations of the
Roman baths. This feature also appears to be represented in profile G031 as a
57 Bouchaud/R edon, in press.
58 Conyers, 2004, p. 50; Doolittle/Collins, p. 2004, 99.
114
Karnak’s Quaysides
faint reflection in the data some 18-20 m along the profile, and in profile G032
some 2–4 m along the profile, starting at a depth of 1.5–2.0 m below the surface
of the ground. This work suggests the wall extends over 200 m northwards of
the tribune.
An Electrical Resistivity Tomography (ERT) profile (P 14, see figure 23)
across the line of embankment wall between the Ptolemaic and Roman baths
excavations was carried out in February 2012 with the probes at 4 m spacing
providing a vertical resolution of c. 2 m in the resistivity readings. The profile
crosses the quayside wall at c. 68 m along the profile length and higher resistance
readings are found down to about 12–13 m below the surface or 66–65 m a.s.l.
This is a little lower than the level of the platform suggested by Ghilardi’s
augering between the facing staircases.
3.10 Ramps
Two of the three lateral ramps to the south of the tribune (key plan see figure 23)
were investigated during Lauffray’s research.59 The central one was recognized
as the work of Taharqa (690–664 B.C.) though the titulary of the king had been
chiselled out by Psamtek. Lauffray thought that the ramp of Taharqa was older
than the ramp located to the north,60 but the recent research shows it was the
contrary and that Taharqa’s building post-dated the ramps which surround it. It
is indeed now clear that, to the east, Taharqa’s ramp had been inserted in the pre-
existing sloping pavement while to the west it was founded on it. The Twenty-
fifth Dynasty ramp therefore sloped down less steeply than its predecessors and
thus ended originally more to the west, probably at the western limit of the
surrounding quays, but this western end is now destroyed.
The recent SCA excavations in this area have found traces of an ancient
waterway in the section of the excavation opposite the ramp of Taharqa. This
waterway has an east-west orientation, but its base lies above the lower end of
the ramp. It indicates that the Nile had shifted westward after the Twenty-fifth
Dynasty (see figure 10). Different fragments of inscribed blocks and statues
were uncovered and many bronze nails were found in the Nile sediments.
The depiction already mentioned of the Karnak tribune with an obelisk, a
sphinx, and a kneeling royal statue is engraved on a block found in the Mut
Temple (now in the Cairo Museum) and is dated to the reign of Psamtek I (see
59 Lauffray, 1971, p. 101–106; Traunecker, 1972.
60 Lauffray, 1971, p, 103–104.
115
Mansour Boraik, Luc Gabolde, Angus Graham
figure 4).61 The presence of a tree between the bark of Amun (i.e., the Nile river)
and the tribune may suggest that the course of the Nile was moving westward
at that time. However it is not the only possible interpretation of this tree which
may also result of an artistic perspective of the background.
Mooring loops were found in the north and south walls of the main ramp
for embarkation and disembarkation of the boats.62 Two scenarios for mooring
are possible, either perpendicular to the ramp or Mediterranean fashion tying up
alongside the north or south wall bow first at the ramp. This latter seems more
likely as the length of the boat would not be restricted. The slope over the upper
9 m of the ramp is slightly steeper than the ‘central’ ramp, which was measured
at 7.5 cm/m. It then steepens to 25.5 cm/m.63
It should also be noted that the northern wall of the ramp has a fragment of a
hymn and title of ritual that priests had to recite during a ceremony in which they
filled theomorphic vases of the Theban triad with water.64 The ramps may have
also been used in a procession of a sacred vase of Amun to access the waters
during a festival to mark the end of one year and the beginning of the new one.65
Figure 10. The ramps.
3.11 Ground Penetrating Radar (GPR) survey of the ramps
A Ground Penetrating Radar (GPR) area survey (20 x 20 m) was conducted using
a GSSI 200 Mhz antenna at the bottom of the ramps in February 2013 in order
to determine whether they extended further west below the excavated ground
61 Benson/Gourlay, 1899, p. 258, 378 and pl. XXII (5); Perdu, 2010; Perdu, 2011.
62 Boraik, 2010b, p. 70, 72.
63 Lauffray, 1971, p. 101, fig. 17.
64 Ibid., p. 101.
65 Traunecker, 1972, p. 234–235.
116
Karnak’s Quaysides
level. The survey was carried out using traverses spaced at 0.5 m intervals. The
GPR data was processed in Reflex2DQuick and GPR Slice software. All profiles
were processed to remove background noise, and a regain function was applied
to strengthen the deeper responses to the radar signal. All data was then sliced
and resampled to produce a series of timeslices through the site (key plan see
figure 23).66
The GPR survey in area AG00667 at the bottom of the exposed ramp adjacent
to the tribune indicates several linear anomalies running from west to east on
the line of the ramp (see figure 11). A single high amplitude linear anomaly
[AG006_1] measuring 14 m in length seems to indicate a continuation of the
exposed ramp revetment/foundations. Several linear and rectilinear anomalies
to the north of this [AG006_2], [AG006_3] mark a parallel wall and possible
structural elements [AG006_4] on the north side of the ramp. A fainter anomaly
[AG006_5] marks a possible continuation of the exposed southern edge of
Taharka’s ramp, with other linear anomalies [AG006_6], [AG006_7] and
[AG006_8] marking a possible earlier ramp revetment or small structures or
platforms associated with the ramp. The results seem to indicate a continuation
of the ramp under the alluvium to the west of the exposed structure, and possibly
different phases of ramp. These anomalies seem to run up to c.7 m below the
current ground level, i.e. 62 m a.s.l. The extension of the ramp may well have
facilitated the loading and unloading of the barque of Amun-Re for the Theban
festival processions. How far the ramp extended and to what height above sea
level it descended is unknown.
66 The survey was carried out by Dominic Barker (Southampton University) and
Sarah Jones (Museum of London Archaeology) and the data was processed by
Kristian Strutt (Southampton University) as part of the collaboration between the
Supreme Council of Antiquities research led by Mansour Boraik and the Theban
Harbours and Waterscapes Survey led by Angus Graham. Graham et al., 2013, p.
50–51; Graham /Strutt, 2013, p. 7.
67 Graham /Strutt, 2013, p. 6–7.
117
Mansour Boraik, Luc Gabolde, Angus Graham
Figure 11. Structures revealed by Ground Penetrating Radar (GPR) in front of
the ramps (K. D. Strutt).
3.12 The quay to the south of the tribune and its date
The excavations south of the ramps have revealed the quayside (key plan see
figure 23) for a distance of around 110 m68 (see figure 12). Though several
phases of building can be identified, the main masonry work seems to date to
the Kushito-Saite period (722-525 B.C.), based upon the parallels of the kind of
masonry and the chisel marks on the ashlar blocks recorded at North Karnak.69
The two upper courses of the wall were constructed after the reigns of Akoris/
Psamouthis, 393-380 B.C., with a sandstone lintel bearing their names being
reused in the upper part of the wall.70 Furthermore the stones in the two upper
courses of the wall bear evidence of iron chisel marks suggesting a Ptolemaic-
Roman date of construction. The uppermost course is characterised by headers
68 Boraik, 2010b, p. 67–69.
69 Gabolde/Rondot, 1993, p. 258–260.
70 Boraik, 2010b, p. 67.
118
Karnak’s Quaysides
and the second course by stretchers, whereas the wall built before this addition
is composed of headers and stretchers within each course. The height of the wall
prior to these two additional courses was measured at 74.40 m a.s.l., which is
precisely the same height as the highest flood recorded on the face of the tribune
dating to year 6 of Taharka’s reign.71 This is circumstantial evidence suggesting
that this may not be a coincidence, but that the exceptional flood was used as a
level for the height of the wall (see figure 13).
Two staircases leading from south to north were exposed during the
excavations. Again mooring loops were revealed cut into the stone blocks of
the wall positioned roughly parallel to the slope of the steps inset into the wall
enabling boats to moor at the quay at a range of water levels throughout the
annual cycle of the Nile.
Figure 12. The quay south of the tribune.
71 Legrain, 1896; von Beckerath, 1966; Broekman, 2002; Gozzoli, 2009.
119
Mansour Boraik, Luc Gabolde, Angus Graham
Figure 13. The sondage on west facing side of the wall.
The arrow head at the base of the second course indicates
the height of the inundation (74.40 m) during year 6 of
Taharka’s reign. Note the second course is made up of
stretchers and the upper course is a series of headers.
(photo: A. Graham, February 2007).
3.13 The southern extension: the double-curved quay
Further south, an extension of the embankment in the shape of a double curved
quay was discovered during the work undertaken next to Neferhotep’s temple
(key plan see figure 23).72 As mentioned before textual sources may indicate
that this wall was built by Montuemhet, Fourth prophet of Amun under the reign
of Taharqa. To the west of the Ram Avenue in front of the Khonsu Temple, an
extension of this embankment wall was discovered. This extension was built
with small squared off blocks of sandstone and curved south toward the Avenue
(see figure 14). This indicates that the Karnak complex was then on land partly
protruding to the west and had been framed by this huge embankment intended
to protect it from the flood erosion.
72 Neferhotep’s temple has been dated to Ptolemy IV through a nearby naos, which
however was not in situ. Barguet, 1962, p. 10–11; Porter /Moss, 1972, p. 224–
225; Goyon/Traunecker, 1982, p. 300 and n. 3; Thiers, 1997, p. 264. For the
reliefs of Ptolemy IV, see Lepsius, 1849, Bl. 15, b-c.
120
Karnak’s Quaysides
Figure 14. The double curved wall under Neferhotep’s temple (view towards
the south-west).
3.14 The quay of the island west of Nectanebo’s dromos
(Saïte ?)
Another part of a wall going under Nectanebo’s sphinx-lined avenue was found
(see figure 15 and key plan see figure 23). This embankment can be roughly
dated to the Kushito-Saïte Period, based on the shape and workmanship of the
blocks.73 Interestingly, the slope of the masonry clearly shows that it represents
the embankment on the eastern side of an Island.
Figure 15. The quay of the island west of Nectanebo’s dromos (view
towards the south).
3.15 Stratigraphical observations related to
Nectanebo’s dromos
The excavations have revealed the complete absence of older layers under
Nectanebo’s dromos. The excavators only encountered Nile mud from Nile
73 Gabolde/Rondot, 1993, p. 258–260.
121
Mansour Boraik, Luc Gabolde, Angus Graham
silting.74 The first conclusion to draw from this observation is that the road
to Luxor in Hatshepsut’s time was certainly not yet there, and most probably
lay 100 m to the east. The second conclusion is that Nectanebo’s dromos
apparently occupied for its greatest part an abandoned channel of the Nile, a
great opportunity which provided the king with a long strip of free land (2 km
long) perfectly suitable for a new road.
3.16 The channel traces on Nectanebo’s dromos
The filling up of the depression on which the monumental 2 km long dromos
of Nectanebo I (380-362 B.C.) was installed, straight from the Mut temple
complex to Luxor temple, was obviously not stabilised over its total length and,
in some places, the pavement sunk down tens of centimetres. This resulted in
the appearance of some sort of incidental ramps, subsequently incised by deep
wheel marks (see figure 16).
Figure 16. The raising of the pavement on Nectanebo’s dromos.
3.17 The processional road to Luxor Temple
In the precinct of Mut the discovery in 2000 by team of Richard Fazzini
(Brooklyn Museum) of a gate of Hatshepsut opening to the west in the north-
74 Boraik, 2010a, p. 51 and personal observations.
122
Karnak’s Quaysides
west sector of the precinct (key plan see figure 23)75 is of some interest to our
discussion as it is likely to have opened on the processional road to Luxor, as
has already been mentioned.
3.18 The processional road and tribune of Montu Temple
An extant tribune was built, certainly by the Twenty-sixth Dynasty, at the
northern end of the Montu dromos (key plan see figure 23).76 However,
augering approximately midway between the tribune and the Montu enclosure
has revealed that this area of North Karnak was still part of the Nile channel,
certainly during the Middle Kingdom, and perhaps until the early New Kingdom.
The ceramic fragments in the lower fining upwards sequences of Auger Site 2
(AS02, see figure 23) had been dated from the Middle Kingdom to the Second
Intermediate Period with one sherd dated to the early New Kingdom.77 However,
a re-examination of the fragments in these lowest levels reveals that they are too
rolled to be certain about their date. The fabrics are known from the Middle
Kingdom to New Kingdom and probably later leaving the dating of the channel
less precise.78 It is not clear where the tribune (if there was one) of Amenhotep III
was constructed. It remains a possibility that it was in the location of the extant
tribune, but it could have been closer to the Temple of Montu.
3.19 The gate of Ptolemy XII Neos Dionysos
A gate of Ptolemy XII Neos Dionysos (≈ 81–59 and 56–52 B.C.) was discovered
at the west end of the east-west dromos running westward from Mut temple,
close to its intersection with what was the Chevrier/Legrain drain (see see figure
22 and key plan see figure 23).79
The continuous pavement of the road from Mut temple to that west end
clearly shows that the previous island had then been joined to the right bank and
75 Fazzini, 2001, p. 61–74.
76 Pillet, 1924; Varille, 1943, p. 1 and pl. III [2–3]; Cabrol, 2001, p. 571–579.
77 Graham /Bunbury 2004; Graham /Bunbury 2005; Bunbury et al., 2008;
Graham, 2010a, p. 134.
78 The ceramic fragments were re-examined by Marie Millet (Le Louvre) and
Aurélia Masson (British Museum) in 2009 using the fabric collection from their
2001–2007 excavations at Karnak as a reference.
79 Boraik, 2010a, 46, Boraik, Thiers, 2015, 51-62.
123
Mansour Boraik, Luc Gabolde, Angus Graham
that the new eastern embankment of the river had been shifted westward a little
further towards the place where the gate was discovered.
4. The geoarchaeological data
4.1 Auger (AS16) in front of the tribune
In the 1890s Legrain excavated to a level 10 courses below the protruding course
of the tribune (see see figure 5), reaching a height of c. 71 m a.s.l.,80 in order to
record the Nile levels on the face of the tribune. Chevrier’s81 excavations in the
1940s had reached the slightly greater depth of c. 70.50 m a.s.l.
Figure 17. Chevrier’s 1940s excavation in front of the
western tribune. The two mooring rope loops in course
four and five are visible. The pump is located at c.70.50 m,
five masonry courses below the stone loops (Photo no. 6112
©CFEETK).
80 Lauffray, 1971, p. 85.
81 Chevrier, 1947, pl. 48.
124
Karnak’s Quaysides
A hand auger (AS16),82 carried out 1.54 m from the face of the tribune starting
at 72.40 m a.s.l., reached a depth of 3.79 m down to 68.61 m a.s.l. when an obst-
ruction terminated the work. Throughout the augering were found chronologically
heterogenous ceramic fragments ranging from the Middle Kingdom to the Roman
Period. All of the material was angular in terms of its wear pattern and not rounded
by water transport. The only rounded sherds were cores from large coarse-ware
vessels. The first 1.90 m was clearly Twentieth century backfill from excavations.
Sample 09 with its bimodal light yellowish brown (2.5Y 6/4) desert sand and very
dark greyish brown (10YR 3/2) mud would appear to mark the contact between
the backfill and the unexcavated sediment at about 70.25 m a.s.l., which accords
well with the excavations of Lauffray and Chevrier. Below this we have evidence
of well-sorted silty sand/sandy silt water-lain deposits and well-sorted muddy sand;
the ceramic fragments point to a terminus post quem date of the Roman Period.
4.2 Auger (AS39) behind the embankment
Auger Site 39 was undertaken at the base of a SCA/MSA excavation conducted
under the direction of Boraik on the south side of the tribune, immediately behind
the embankment wall.83 The height at the top of the auger was 70.85 m a.s.l.,
terminating at 67.0 m a.s.l. due to pressure of the groundwater. AS39 aimed to
investigate the process and chronology of the construction of the embankment wall.
The excavated sections revealed a Late Roman Period cut made behind
the wall, which may have been an attempt to get to a foundation deposit at
the corner of the tribune and the embankment wall. Such practices have been
observed in several locations in the temple of Karnak. Unfortunately this hole
may have destroyed any foundation trench that might have been present to the
east of the embankment.
Primae facie it would seem that we have a sandbar or levee at the location
of the tribune during the Middle Kingdom (see table 1). This finding has
potentially considerable implications for understanding the position of the
tribune and its possible date. However, with only a single auger on the east side
of the embankment wall and a clear gap in the auger data between this location
82 AS16 was carried out in February 2004 by Morag Hunter (University of
Cambridge) and Angus Graham (University College London) as part of the
Karnak Land- and Waterscapes Survey directed by Angus Graham and Judith
Bunbury (University of Cambridge). The ceramic fragments were studied by
Sally-Ann Ashton (Fitzwilliam Museum, University of Cambridge).
83 Graham et al., 2012, p. 41.
125
Mansour Boraik, Luc Gabolde, Angus Graham
and the fifth pylon to the east and the court of the Opet Temple to the south it is
difficult to clearly understand what this represents. Could it be a bar off the west
side of the early island of Karnak? Could it represent the continuation of the bar
deposits identified in the Opet Temple court augering? The ERT profile (P 3 see
see figure 23) between the Khonsu temple and the 10th pylon court and hand
auger along the profile revealed that a backwater or slough lay between the two
areas during the First Intermediate Period.84
It also raises the question of when the tribune could have been constructed.
The sandbar at the level it was would have been submerged for much of the
annual cycle during the Middle Kingdom to early New Kingdom period.
Height m a.m.s.l. Sedimentary description / Chronological information
interpretation
70.85 Backfill into the excavation
70.50 Muddy, moderately sorted fine 70.50 New Kingdom
(sometimes very fine) sand with The ceramic fragments were
clasts of sandstone and concre- mainly typical of the New
tions, sherds, quartz, and limes- Kingdom and not earlier
tone. Small numbers of granite, than Thutmose I
dolerite, diorite, bone, flint, and
68.86 Middle Kingdom –
shell fragments also occur
New Kingdom
69.50 Muddy medium and fine sands
with an even greater variety of
clast types.
68.30 A unit of less muddy, fine to ve- 68.30 Middle Kingdom –
ry-fine sands that may represent early New Kingdom
levee or sandbar deposits From identified fabrics, the
bulk of the material is from
the Middle Kingdom – early
New Kingdom prior to the
67.00 reign of Thutmose I. Frag-
ments were less frequent and
medium to medium-high
rolled
Table 1: Sedimentary description/interpretation and chronology of Auger Site 39.
84 Graham, 2010b.
126
Unauthenticated
Download Date | 3/15/17 11:43 AM
Karnak’s Quaysides
4.3 Was the quayside part of a harbour basin?
The tribune and quayside wall exposed by Chevrier have previously been
reconstructed as part of a harbour basin connected to the Nile by a canal.85 Such
a reconstruction has been influenced by the scene in the tomb of Neferhotep
(TT49, see see figure 2). However, following two hand augers carried out in
front of the wall – one to the south (AS31) and one to the north of the tribune
(AS34)86 – it can definitively be stated that the quayside wall was not part of
a semi-enclosed basin but that it had been in direct contact with the Nile. If it
had been in a semi-enclosed basin, one would have expected to find very fine
sediment (silt and clay-sized particles) in the augers.
In AS31 fine sand was recorded throughout the auger cores. The sediments
in the first 1.95 m (samples 01-17) down to 69.22 m a.s.l. are mostly fine sandy
silt with some silt deposits. They are all well-sorted and deposited by the river.
Below this a water-lain package of sands with medium sand at the base fining
upwards to fine sand (samples 18-21) was recorded. These fining-upwards sands
are typical of sandbar formations in the Nile. This lateral bar appears to have
formed during the construction process. In samples 18–21 >20 % of the total
core weight is fragments of sandstone, believed to be debris from dressing the
stone blocks. An increased percentage of sandstone fragments at 70.05 m a.s.l.
(sample 08) may represent a further dressing of the wall suggesting the wall was
constructed over a number of years.
This interpretation is supported by the auger north of the tribune. The
deposits encountered were all fining-upwards sand and silt packages with
abundant yellow sandstone. The deposits in AS34 are generally finer than those
recorded in AS31. This is consistent with the water being a little slower to the
north of the tribune and can be understood by the curvature of the revetment
wall. The tribune is the furthest westerly point of revetment wall and hence the
water would have been slacker to the north of it.
85 For example Aufrère et al., 1997, p. 82–83, 86–87.
86 AS31 and AS34 were carried out as part of the collaboration of the SCA research
excavations led by Mansour Boraik and the Karnak Land- and Waterscapes Survey
led by A. Graham and J. Bunbury. AS31 was conducted at the base of the SCA
sondage against the wall in the ‘Madrasa site’ excavations by Angus Graham,
Romain Mensan (Cfeetk), Shima Montasser Abu El Haggag (SCA) and Rosemary
LeBohec (Cfeetk) in February 2007. AS34 was carried out by Angus Graham,
Judith Bunbury and Salah El-Masekh (SCA) in February 2008. Aurélia Masson
and Marie Millet studied the ceramic fragments from both AS31 and AS34.
127
Mansour Boraik, Luc Gabolde, Angus Graham
Dating the quay is more problematic. The study of the ceramic fragments in
AS31 and AS34 has not led to definitive evidence of the date of construction of
the wall. In AS31 there are in fact only 128 sherds > 4 mm in size in the whole
core, which is a relatively low mean number of fragments per metre of depth. The
sherds are heavily abraded, which is consistent with the coarse sediment matrix.
Most of the material is dated to Middle Kingdom to Roman Period (MKRom),
the abraded nature making tighter dating not possible. However, there is also
material from the end of the Third Intermediate Period to Ptolemaic Period.
There is no material specifically from the Middle Kingdom, New Kingdom, early
Third Intermediate Period (Twenty-first – Twenty-second Dynasties), Roman or
Late Roman Periods. The material dating from the end of the Third Intermediate
Period (Twenty-fifth Dynasty) to the Ptolemaic Period suggests a terminus post
quem for the construction of the wall. A late Third Intermediate Period/early
Late Period date of construction (Twenty-fifth – Twenty-sixth Dynasty) would
be contemporary with some of the later flood records on the western tribune.87
An earlier construction date could not be ruled out as early Third Intermediate
Period material may be present in the abraded MKRom corpus.
This conclusion is supported by the two deep water wells that were dug in
2009 with the support of the American Research Center in Egypt.88 Remains of
acacia wood were found at a depth of 17 m (z = 56 m a.s.l.). In the framework
of a convention signed with the Institut Français d’Archéologie Orientale du
Caire, 14C testing was conducted, which indicated that these samples date to the
New Kingdom (≈ 1494-1402 B.C. that encompasses the reign of Thutmose III).
It is suggested that the river bed in the time of this king lay between 54.82 m
and 58.82 m a.s.l.89 Furthermore, it has been argued that this wood is from the
remains of a wrecked boat, which sank down to the river bed. However, it needs
to be stated that the dating of the wood does not date the time the boat sank as
the boat may have had a considerable working life or the timber may have been
reused in another younger vessel. Thus this finding does not conclusively prove
that the river was in this location during the reign of Thutmose III.
87 Broekman, 2002; Legrain, 1896; von Beckerath, 1966.
88 Boraik et al., 2010; Boraik /Ghilardi, 2011; Boraik et al., 2012.
89 Gabolde, in press.
128
Karnak’s Quaysides
4.4 Conclusions on the western layout in
the late New Kingdom, Kushite and Saite ages
To sum up, the recent excavations in front of Karnak show that, in the Late
Period, the embankments did not form part of a basin, as it was probably the
case earlier, following the depiction of the New Kingdom tomb of Neferhotep
(TT49, ≈ 1300 B.C.). The Eighteenth Dynasty basin may well have been located
in front of the Second Pylon in what is now the First Court. It seems possible
that an area of low lying (marshy?) ground in this area was augmented and
reshaped by the Egyptians to construct a basin and that a channel was dug to the
Nile. This area of Karnak may have been the in-filled backwater observed in the
augering and ERT profile (P3, see see figure 23) between the Khonsu temple and
the court of the Tenth pylon90 and also a previous auger (AS11) shows evidence
of this backwater environment just west of the court of the ninth pylon.91 Further
geoarchaeological investigation is required in this area to clarify this hypothesis.
Returning to the massive wall running south and north of the extant western
tribune, we suggest that the wall had two principal functions. Firstly, it was
used as a quay to enable boarding and disembarkation of boats via the four
staircases exposed thus far. The stairs are too narrow to safely load and unload
the bark shrine of Amun on to his boat. However, the lateral ramps immediately
south of the tribune provide a wide enough space to be able to load and unload
the bark shrine for Amun-Re’s journeys during the Opet Festival and Beautiful
Festival of the Valley. This massive wall may well have also been constructed as
a defensive measure in order to protect the temple complex against the erosive
action of the river in flood. It would not have served to prevent water entering the
temple precinct as water would still enter the temple by a rise in the groundwater
level subject to the height of the inundation. It may have been constructed in
response to an observed westward migration of the river and built as a barrier to
prevent the river eroding the site of Karnak.
The extent of this massive wall reveals it to be a large-scale project. The
aesthetic function of such a huge well-constructed wall should also been borne
in mind. When the river was low it would have provided an impressive framing
of the western extent of the site. Did it also serve as a clear boundary between
the sacred space of Karnak and rest of the world?
The sandstone chippings found in the augers attest to more than one phase of
construction and dressing of the stones in the wall. The findings of AS39 and the
90 Graham, 2010b.
91 Graham 2010a, p. 135–136, fig. 11.
129
Mansour Boraik, Luc Gabolde, Angus Graham
recent excavations raise the possibility that the first phase of construction of this
embankment began during the late New Kingdom. However, until the level of
the base of the wall is known and further augering is carried out this proposition
remains inconclusive. We propose that a subsequent phase of the wall was built
by Taharqa in the Twenty-fifth Dynasty to the level of his year 6 inundation
with his work on the area clearly attested by the central ramp. A further vertical
extension of two further courses took place in the Ptolemaic Period.
5. Conclusion
The variety of data presented in this paper reveal numerous features in many
geographical areas and belonging to different periods. We attempt here to sort
them by date in order to propose a provisional and hypothetical view of the
evolution of the temple’s embankments, the relationship to the migration of the
Nile, and the existence of channels and islands at the following epochs:
5.1 Hatshepsut-Thutmose III
A tribune was apparently located to the west of the “festival court” as can be
postulated after the indications of the “Chapelle rouge”.92 The Nile or a canal must
have flowed more or less parallel to the west walls of the court of the seventh and
eighth pylons as was first suggested by Legrain93 and more recently supported
by the augering programme of Graham and Bunbury.94 It is very likely that
remains of the old eastern branch of the Nile had transformed into a backwater
marshland to the north and the east. To the south, a slough lay between the main
body of Karnak and a western bar upon which the Opet and Khonsu temples were
subsequently founded.95 The procession road to Luxor was following the axis of
the seventh and eighth pylons, the dromos of Mut and then another dromos to
Luxor located slightly west of the Hatshepsut door found at Mut temple.
The northern extent of the bar on the west side of Karnak depicted in figure
18 is conjectural. Furthermore, the extent of the backwater on the east side of
Karnak is not yet fully determined. Further investigations are necessary to clarify
both these features of the Karnak landscape during the mid Eighteenth Dynasty.
92 Lacau/Chevrier, 1977, p. 170, § 227; 185, § 263.
93 Legrain, 1906a, p. 112; Legrain, 1906b, p. 141.
94 Bunbury et al., 2008; Graham, 2010a; Graham, 2010b.
95 Graham, 2010b.
130
Karnak’s Quaysides
Figure 18. Hatshepsut-Thutmose III. Based on the cartographic
fund of the architectural and topographical unit of the USR 3172
of the CNRS at Karnak (© CFEETK).
5.2 Tutankhamun to Ramses III
There is a scenario which presents the possibility of matching the representation
of the Nile in Neferhotep‘s tomb with the geomorphological data: the former
backwater of the Nile may have been transformed into a rectangular basin.
Consequently a canal connecting the basin to the Nile might have been dug
through the old bar. The location of the tribune slightly west of the second
pylon and the location and dimensions of the basin as well as the position and
geometry of the island to the west are hypothetical reconstructions.
131
Mansour Boraik, Luc Gabolde, Angus Graham
Figure 19. Tutankhamun. Based on the cartographic fund of
the architectural and topographical unit of the USR 3172 of the
CNRS at Karnak (© CFEETK).
5.3 Twenty-fifth to Twenty-sixth Dynasties
With the Twenty-fifth to Twenty-sixth Dynasties, the data available are more
abundant as numerous traces of the embankments, tribunes, protective walls
and quays have from place to place survived. The western tribune is still there,
the quays north and south of it are preserved to a great extent, the double curved
wall (possibly of Montuemhat) protecting Khonsu and Opet temples still shows
remains of its lower courses. Last but not least, remains of the eastern quay of
the island which lay west of Karnak are still preserved near Nectanebo’s dromos.
To the north, a stone masonry tribune was built, possibly by order of a king
Psamtek, on the axis and along the dromos of the temple of Montu. The location
132
Karnak’s Quaysides
and area of the basin fronting the tribune at North Karnak are conjectural and
require further work to clarify this.
Figure 20. Twenty-fifth to Twenty-sixth Dynasties. Based on the
cartographic fund of the architectural and topographical unit of
the USR 3172 of the CNRS at Karnak (© CFEETK).
5.4 Nectanebo and early Ptolemies
The Saite channel appears to have been progressively filled up, providing new
land and giving the opportunity to trace a monumental dromos straight to Luxor
temple. At the same time, the westward Nile migration created a new channel
(the “canal of Amun”), and a new island (dedicated to Amun and named Tamaut)
133
Mansour Boraik, Luc Gabolde, Angus Graham
as recorded in the archive of Hermias’s trial. Again the location and geometry of
the island to the west of Karnak remain conjectural.
Figure 21. Nectanebo and early Ptolemies. Based on the
cartographic fund of the architectural and topographical unit of
the USR 3172 of the CNRS at Karnak (© CFEETK).
5.5 End of Ptolemaic and Roman ages
The canal of the Ptolemaic Period silted up and under Ptolemy VIII at the
earliest, the old quay was partly dismantled and the baths were built over it and
dumping over the wall took place in order fill up the former channel. The river
bank had already migrated westwards. The position of the river bank and the
island are conjectural.
134
Karnak’s Quaysides
Figure 22. End of Ptolemaic and Roman ages. The gate of
Ptolemy XII, which suggests the position of the embankment
to the west end of Mut dromos, is indicated by a small black
dot. Based on the cartographic fund of the architectural and
topographical unit of the USR 3172 of the CNRS at Karnak
(© CFEETK).
The five views of the evolution of the embankments of the temple of Karnak
presented above are based upon current archaeological, geoarchaeological and
textual interpretation, but remain conjectural. Further geoarchaeological survey
is required to clarify the views presented.
135
Mansour Boraik, Luc Gabolde, Angus Graham
Figure 23. Key-plan of the temples of Karnak with indication of
the archaeological units and of the augering sites. Based on the
cartographic fund of the architectural and topographical unit of
the USR 3172 of the CNRS at Karnak (© CFEETK).
136
Karnak’s Quaysides
Acknowledgements
Pierre Zignani, engineer of research at the CNRS and chief of the architectural
and topographical unit of the USR 3172 of the CNRS at Karnak, very kindly
provided us with a map of the layout of the area from Karnak to Luxor temples,
from the cartographic fund of CFEETK. The SCA (Mansour Boraik and his
successors on the site) offered all facilities to conduct the enquiries on the spot.
The Franco Egyptian Centre, through the kindness of its director, Christophe
Thiers, for the CNRS laboratory, provided us with the very valuable data of its
rich archival documentation. Alban-Brice Pimpaud had the kindness to share
with us information on the relative levelling in the surroundings of Karnak.
Angus Graham would like to thank all those who have contributed to the augering
and geophysical programme at Karnak (2002-09) as part of the Karnak Land-
and Waterscapes Survey (KLaWS) especially his co-director Judith Bunbury,
and since 2011 all the team of the Theban Harbours and Waterscapes Survey
(THaWS) and all their colleagues and friends at Karnak who have generously
collaborated with them since 2002.
Bibliography
Aufrère, Sydney/Golvin, Jean Claude/Goyon, Jean Claude, L’Égypte
restituée. Tome 1: Sites et temples de Haute Égypte. De l’apogée de la
civilisation à l’époque gréco-romaine, Paris 1997.
Barguet, Paul, Le temple d’Amon-Rê à Karnak, essai d’exégèse (Recherches
d’archéologie, de philologie et d’histoire 21), Cairo 1962.
Benson, Margaret/Gourlay, Janet, The Temple of Mut in Asher, London
1899.
Bonneau, Danielle, Le fisc et le Nil: incidences des irrégularités de la crue du
Nil sur la fiscalité foncière dans l’Égypte grecque et romaine (Publications
de l’Institut de droit romain de l’Université de Paris. Nouvelle séries 2),
Paris 1971.
Boraik, Mansour, Sphinxes Avenue Excavations. First Report, in: Les Cahiers
de Karnak 13 (2010a), p. 45-64.
Id., Excavations of the Quay and the Embankment in front of Karnak Temples.
Preliminary Report, in: Les Cahiers de Karnak 13 (2010b), p. 65-78.
Id., The Sphinx Avenue Excavations. Second Report, in: Les Cahiers de Karnak
14 (2013a), p. 13-32.
137
Mansour Boraik, Luc Gabolde, Angus Graham
Id., A Roman Bath at Karnak Temples. A Preliminary Report, in: Les Cahiers de
Karnak 14 (2013b), p. 33-46.
Boraik, Mansour/Faucher, Thomas, Le trésor des bains de Karnak, in: Les
Cahiers de Karnak 13 (2010), p. 79-100.
Boraik, Mansour/Ghilardi, Matthieu/Bakhit, Saad/Hafez, Abdel/Ali,
Mohamed Hatim/el-Masekh, Salah/Mahmoud, Attaieb Garib, Geomor-
phological investigations in the western part of the Karnak temple (quay and
ancient harbour). First results derived from stratigraphical profiles and man-
ual auger boreholes and perspectives of research, in: Les Cahiers de Karnak
13 (2010), p. 101-109.
Boraik, Mansour/Ghilardi, Matthieu, Reconstructing the holocene deposi-
tional environments in the western part of Ancient Karnak temples com-
plex (Egypt): a geoarchaeological approach, in: Journal of Archaeological
Science 38 (2011), p. 3204-3216.
Boraik, Mansour/Ghilardi, Matthieu/Tristant, Yann, Nile River evolution
in Upper Egypt during the Holocene: palaeoenvironmental implications for
the Pharaonic sites of Karnak and Coptos. Évolution du Nil en Haute Égypte
au cours de l’Holocène: implications paléoenvironnementales sur les sites
pharaoniques de Karnak et Coptos, in: Géomorphologie: relief, processus,
environnement janvier-mars 1 (2012), p. 7-22.
Boraik, Mansour/el-Masekh, Saleh/Guimier-Sorbets, Anne-Marie/Redon,
Bérangère, Ptolemaic Baths in front of Karnak Temples. Recent Discoveries
(Season 2009-2010), in: Les Cahiers de Karnak 14 (2013), p. 47-77.
Boraik, Mansour/ Thiers, Christophe, Une chapelle consacrée à Khonsou sur
le dromos entre le temple de Mout et le Nil?, in: Les Cahiers de Karnak 15
(2015), p. 51-62.
Bouchaud, Charlène/Redon, Bérangère, (eds.), Current Research on Baths
in Egypt: New Archaeological Discoveries, in: Actes de la journée d’étude,
Cairo (in press).
Broekman, Gerard P.F., The Nile Level Records of the Twenty-Second and
Twenty-Third Dynasties in Karnak: A Reconsideration of their Chronological
Order, in: Journal of Egyptian Archaeology 88 (2002), p. 163-178.
Brugsch, Heinrich/Revillout, Eugène, Données géographiques et topogra-
phiques sur Thèbes, in: Revue Égyptologique 1 (1880), p. 172-180.
Bunbury, Judith M./Graham, Angus/Hunter, Morag A., Stratigraphic
Landscape Analysis: Charting the Holocene Movements of the Nile at
Karnak through Ancient Egyptian Time, in: Geoarchaeology 23,3 (2008),
p. 351–373.
138
Karnak’s Quaysides
Cabrol, Agnès, Une représentation de la tombe de Khâbekhenet et les dromos
de Karnak-Sud : nouvelles hypothèses (les béliers du dromos du temple de
Khonsou et l’intérieur de l’enceinte du temple de Mout), in: Les Cahiers de
Karnak 10 (1995), p. 33-63.
Id., Les voies processionnelles de Thèbes, (Orientalia Lovaniensia Analecta 97),
Leuven 2001.
Cabrol, Agnès/Traunecker, Claude, Remarques au sujet d’une scène de la
tombe de Neferhotep (TT 49): Les fonctions de Neferhotep, la représentation
des abords ouest de Karnak et son contexte, in: Cahiers de Recherches de
l’Institut de Papyrologie et d’Égyptologie de Lille 15 (1993), p. 19-30.
Charloux, Guillaume, Rapport préliminaire sur la première campagne de
fouilles du parvis du temple d’Opet à Karnak, in: Les Cahiers de Karnak 13
(2010), p. 195-226.
Charloux, Guillaume/Angevin, Raphaël/Marchand, Sylvie/Monchot,
Hervé/Obousier, Agnès/Roberson, Joshua/Virenque, Hélène, Le par-
vis du temple d’Opet à Karnak. Exploration archéologique (2006-2007),
(Travaux du Centre franco-égyptien d’étude des temples de Karnak, Biblio-
thèque générale 41), Cairo 2012.
Chevrier, Henri, Rapport sur les travaux de Karnak (1947-1948 [sic. 1946-
1947]), in: Annales du Service des Antiquités de l’Égypte 47 (1947), 161-
183.
Clarke, Somers, El-Kâb and the Great Wall, in: Journal of Egyptian
Archaeology 7 (1921), p. 54-79.
Condon, Virginia, Seven Royal Hymns of the Ramesside Period, (Münchner
Ägyptologische Studien 37), Munich 1978.
Conyers, Lawrence B., Ground-penetrating radar for archaeology, (Geophysical
Methods for Archaeology 1), Walnut Creek, Calif. 2004.
Davies, Norman de Garis, The Tomb of Neferhotep at Thebes vol. I, New York
1933.
Davies, Norman de Garis, The Tomb of Neferhotep at Thebes vol. II, New
York 1933.
Doolittle, James A./Collins, Mary E., Suitability of soils for GPR
investigations, in Ground Penetrating Radar, 2nd Edition, Volume 1, ed. by
David J. Daniels, London 2004, p. 97-108.
Egli, Ernst, Geschichte des Städtebaues. Band 1. Die alte Welt, Zürich 1959.
Eyre, Christopher, The water regime for orchards and plantations in Pharaonic
Egypt, in: Journal of Egyptian Archaeology 80 (1994), p. 57-80.
Fazzini, Richard, Some Aspects of the Precinct of the Goddess Mut in the New
Kingdom, in: Leaving No Stones Unturned: essays on the ancient Near East
139
Mansour Boraik, Luc Gabolde, Angus Graham
and Egypt in Honor of Donald Hansen, ed. by Erica Ehrenberg, Winona
Lake 2001, p. 63-76.
Foucart, Georges, Études thébaines. La belle fête de la Vallée, in: Bulletin de
l’institut français d’archéologie orientale 24 (1924), p. 1-209.
Gabolde, Luc, Les origines de Karnak et la genèse de la théologie d’Amon,
in: Bulletin de la société française d’égyptologie 186-187 (2014), p. 13-35.
Id., La genèse d’un temple, la naissance d’un dieu, Cairo 2017 in press.
Gabolde, Luc/Rondot, Vincent, Une catastrophe antique à Karnak-Nord, in:
Bulletin de l’institut français d’archéologie orientale 93 (1993), p. 245-264.
Gardiner, Alan Henderson, New Literary Works from Ancient Egypt, in:
Journal of Egyptian Archaeology 1 (1914), p. 20-35.
Id., Ramesside Administrative Documents, London 1940.
Id., Ramesside Texts Dealing with the Transport of Corn, in: Journal of Egyptian
Archaeology 27 (1941), p. 19-73.
Id., The Wilbour Papyrus. Volume II. Commentary. London 1948.
Gasse, Annie, Données nouvelles administratives et sacerdotales sur
l’organisation du domaine d’Amon: XXe-XXIe dynasties, à la lumière des
papyrus Prachov, Reinhardt et Grundbuch (avec édition princeps des papyrus
Louvre AF 6345 et 6346-7), (Bibliothèque d’étude 104), Cairo 1988.
Goyon, Jean Claude/Traunecker, Claude, Une stèle tardive dédiée au dieu
Neferhotep (CS X 1004), in: Les Cahiers de Karnak 7 (1982), p. 299-302.
Gozzoli, Roberto B., Kawa V and Taharqo’s byȝwt : some aspects of Nubian
royal ideology, in: Journal of Egyptian Archaeology 95 (2009), p. 235-248.
Graham, Angus, Review: Grain Transport in the Ramesside Period. Papyrus
Baldwin (BM EA 10061) and Papyrus Amiens. By Jac J. Janssen. Hieratic
Papyri in the British Museum, 8. London, British Museum Press, 2004, in:
Journal of Egyptian Archaeology 93 (2007), 298-300.
Id., Islands in the Nile. A Geoarchaeological Approach to Settlement Location
in the Egyptian Nile Valley and the Case of Karnak, in: Cities and Urbanism
in Ancient Egypt. Papers from a workshop in November 2006 at the Austrian
Academy of Sciences, (Österreichische Akademie der Wissenschaften,
Denkschriften der Gesamtakademie 40, Untersuchungen der Zweigstelle
Kairo des Österreichischen Archäologischen Instituts, XXXV), ed. by.
Manfred Bietak/Ernst Czerny/Irene Forstner-Müller, Vienna, 2010a,
p. 125-143.
Id., Ancient landscapes around the Opet temple, in: Egyptian Archaeology 36
(2010b), p. 25-28.
Graham, Angus/Bunbury, Judith, The ancient landscapes and waterscapes of
Karnak, in: Egyptian Archaeology 27 (2005), p. 17-19.
140
Karnak’s Quaysides
Graham, Angus/Bunbury, Judith, Pottery from the Alluvial Environments at
Karnak-North, in: Bulletin de Liaison du Groupe International d’Étude de la
Céramique Égyptienne 22 (2004), p. 55-59.
Graham, Angus/Strutt, Kristian D./Hunter, Morag A./Jones, Sarah/
Masson, Aurélia/Millet, Marie/Pennington, Benjamin T., Theban
Harbours and Waterscapes Survey, 2012, in: Journal of Egyptian Archaeology
98 (2012), 27-42.
Graham, Angus/Strutt, Kristian D., Ancient Theban temple and palace
landscapes, in: Egyptian Archaeology 43 (2013), 5-7.
Graham, Angus/Strutt, Kristian D./Emery, Virginia L./Jones, Sarah/
Barker, Dominic B. Theban Harbours and Waterscapes Survey, 2013, in:
Journal of Egyptian Archaeology 99 (2013), 35-52.
Janssen, Jac J., Grain Transport in the Ramesside Period. Papyrus Baldwin
(BM EA 10061) and Papyrus Amiens (Hieratic Papyri in the British Museum
8), London 2004.
Jeffreys, David G., The Survey of Memphis I: The Archaeological Report
(Egypt Exploration Society Occasional Publications 3). London 1985.
Kaplony-Heckel, Ursula, Land und Leute am Nil nach demotischen Inschriften,
Papyri und Ostraka gesammelte Schriften, Volume 1 (Ägyptologische
Abhandlungen 71), Wiesbaden 2009.
Id., Theben-Ost III, in: Zeitschrift für ägyptische Sprache und Altertumskunde
137 (2010), p. 127-144.
Lacau, Pierre/Chevrier, Henri, Une chapelle d’Hatshepsout à Karnak I, Cairo
1977.
Lanoë, Emmanuel, Fouilles à l’est du VIe pylône: l’avant-cour sud et le passage
axial, in: Les Cahiers de Karnak 12 (2007), p. 373-390.
Larché, François/ Burgos, Franck, La chapelle Rouge: le sanctuaire de
barque d’Hatshepsout. Volume 1: Fac-similés et photographies des scènes,
Paris 2006.
Lauffray, Jean, Abords occidentaux du premier pylône de Karnak. Le dromos,
la tribune et les aménagements portuaires, in: Kêmi 21 (= Les Cahiers de
Karnak 4) (1971), p. 77-144.
Lauffray, Jean/Sauneron, Serge/Traunecker, Claude, La tribune du quai
de Karnak et sa favissa. Compte rendu des fouilles menées en 1971-1972 (2e
campagne), in: Les Cahiers de Karnak 5 (1975), p. 43-76.
Leclant, Jean, Montouemhat, quatrième prophète d’Amon, prince de la Ville
(Bibliothèque d’étude 35), Cairo 1961.
Id., Recherches sur les monuments thébains de la 25e dynastie dite éthiopienne
(Bibliothèque d’étude 36), Cairo 1965.
141
Mansour Boraik, Luc Gabolde, Angus Graham
Legrain, Georges, Textes gravés sur le quai de Karnak, in: Zeitschrift für
ägyptische Sprache und Altertumskunde 34 (1896), 111-118.
Id., Fouilles et recherches à Karnak, in: Bulletin de l’Institut d’Égypte 4/6
(1906a), 109-127.
Id., Nouveaux renseignements sur les dernières découvertes faites à Karnak (15
novenbre 1904-25 juillet 1905), in: Recueil de travaux relatifs à la philologie
et à l’archéologie égyptiennes et assyriennes 28 (1906b), p. 137-161.
Lepsius, Karl Richard, Denkmaeler aus Aegypten und Aethiopien. Band IX.
Denkmaeler aus der Zeit der griechischen und roemischen Herrschaft, Berlin
1849.
Lichtheim, Miriam, Ancient Egyptian Literature. Vol.II. The New Kingdom,
Berkeley 1976.
Loeben, Christian E., Der Zugang zum Amuntempel von Karnak im Neuen
Reich. Zum Verständnis einer zeitgenössischen Architekturdarstellung ,
in: The Intellectual Heritage of Egypt: studies presented to Lászlo Kákosy
by friends and colleagues on the occasion of his 60th birthday (Studia
Aegyptiaca 14), ed. by Ulrich Luft, Budapest 1992, p. 393-401.
Macklin, Mark G. /Toonen, Willem H. J./Woodward, Jamie C./Williams,
Martin A. J./ Flaux, Clément/Marriner, Nick/Nicoll, Kathleen/
Verstraeten, Gert/Spencer, Neal/Welsby, Derek, A new model of river
dynamics, hydroclimatic change and human settlement in the Nile Valley
derived from meta-analysis of the Holocene fluvial archive, in: Quaternary
Science Reviews 130 (2015), 109-123.
Meeks, Dimitri, Le grand texte des donations au temple d’Edfou (Bibliothèque
d’étude 59), Cairo 1972.
Peet, Thomas E., The great tomb-robberies of the twentieth Egyptian dynasty,
New York 1997 (re-publication of the Oxford 1930 edition).
Perdu, Olivier., Le prétendu ‘an V’ mentionné sur les ‘blocs de Piânkhi’, in:
Revue d’Égyptologie 61 (2010), p. 151-157.
Id., Les ‘blocs de Piânkhi’ après un siècle de discussions, in: La XXVIe dynastie:
continuités et ruptures, Promenade saïte avec Jean Yoyotte (Actes du
Colloque international organisé les 26 et 27 novembre 2004 à l’Université
Charles-de-Gaulle – Lille 3), ed. by Didier Devauchelle, Lille 2011,
p. 225-240.
Pestman, Pieter W., The Archives of the Theban Choachytes (second century
B.C.): a survey of the Demotic and Greek papyri contained in the archive
(Studia demotica 2), Leuven 1993.
Pillet, Maurice, Rapport sur les travaux de Karnak (1923-1924), in: Annales
du Service des Antiquités de l’Égypte 24 (1924), p. 53-88.
142
Karnak’s Quaysides
Porter, Bertha/Moss, Rosalind L. B., Topographical Bibliography of
Ancient Egyptian Hieroglyphic Texts, Reliefs and Paintings I. The Theban
Necropolis. Part 1. Private Tombs, Oxford 1960.
Id., Topographical Bibliography of Ancient Egyptian Hieroglyphic Texts,
Reliefs and Paintings II. Theban Temples. 2nd edition, Oxford 1972.
Quack, Joachim F., Studien zur Lehre für Merikare (Göttinger Orientforschungen
4, Ägypten 23), Wiesbaden 1992.
Id., Die Lehren des Ani. Ein neuägyptischer Weisheitstext in seinem kulturellen
Umfeld (Orbis Biblicus et Orientalis 141), Freiburg 1994.
Ricke, Herbert, Das Kamutef-Heiligtum Hatschepsuts und Thutmoses’III. in
Karnak, (Beiträge zur ägyptischen Bauforschung und Altertumskunde 3,2),
Cairo 1954.
Schenkel, Wolfgang, Die Bewasserungsrevolution im alten Ägypten, Mainz
1978.
Schlüter, Arnulf, Sakrale Architektur im Flachbild. Zum Realitätsbezug von
Tempeldarstellungen (Ägypten und Altes Testament 78), Wiesbaden 2009.
Seidlmayer, Stephan J., Historische und moderne Nilstände: Untersuchungen
zu den Pegelablesungen des Nils von der Frühzeit bis zur Gegenwart, Berlin
2001.
Smith, Harry S./Jeffreys, David G., A survey of Memphis, Egypt. Antiquity,
60/229 (1986), p. 88-95.
Stanley, Jean-Daniel/Krom, Michael D./Cliff, Robert A./Woodward,
Jamie C., Nile flow failure at the end of the Old Kingdom, Egypt: Strontium
isotopic and petrologic evidence, in: Geoarchaeology 18/3 (2003), p. 395-
402.
Thiers, Christophe, Un naos de Ptolémée II Philadelphe consacré à Sokar, in:
Bulletin de l’institut français d’archéologie orientale 97 (1997), p. 253-268.
Traunecker, Claude, Les rites de l’eau à Karnak d’après les textes de la rampe
de Taharqa, in: Bulletin de l’institut français d’archéologie orientale 72
(1972), p. 195-236.
Varille, Alexandre, Karnak-Nord I (Fouilles de l’Institut français
d’Archéologie orientale du Caire 19), Cairo 1943.
von Beckerath, Jürgen, The Nile Level Records at Karnak and their Importance
for the History of the Libyan Dynasty, in: Journal of the American Research
Center in Egypt 5 (1966), p. 43-55.
Yoyotte, Jean, À propos des “terrains neufs” et de Thmouis, in: Histoire,
géographie et religion de l’Égypte ancienne. Opera Selecta (Orientalia
Lovaniensia Analecta 224), Leuven 2013, p. 231-237 (re-edition of the same
article previously published in two parts in Groupe Linguistique d’Études
143
Mansour Boraik, Luc Gabolde, Angus Graham
Chamito-Sémitiques 8, 1961, p. 100-101 and Groupe Linguistique d’Études
Chamito- Sémitiques 9, 1962, p. 5-9).
Wreszinski, Walter, Die Inschriften des Monthemhet im Tempel der Mut, in:
Orientalistische Literaturzeitung 13 (1910), p. 385-399.
144
